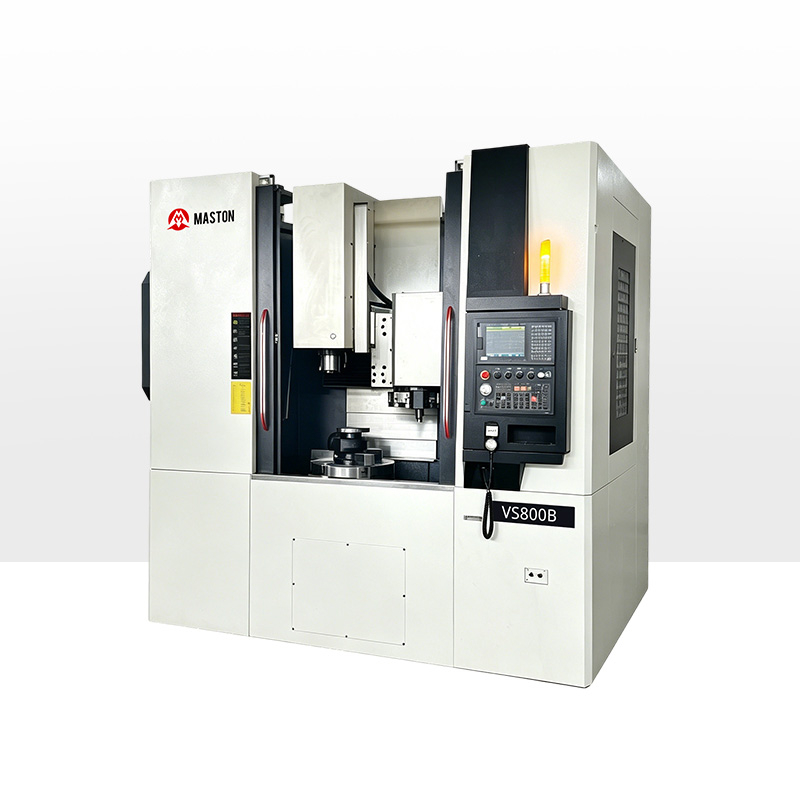

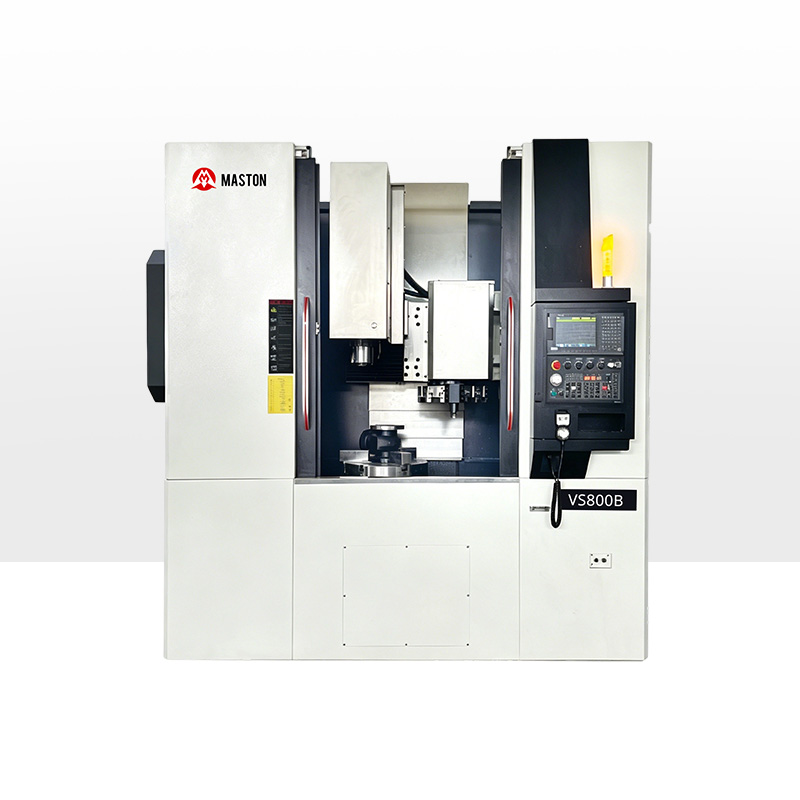

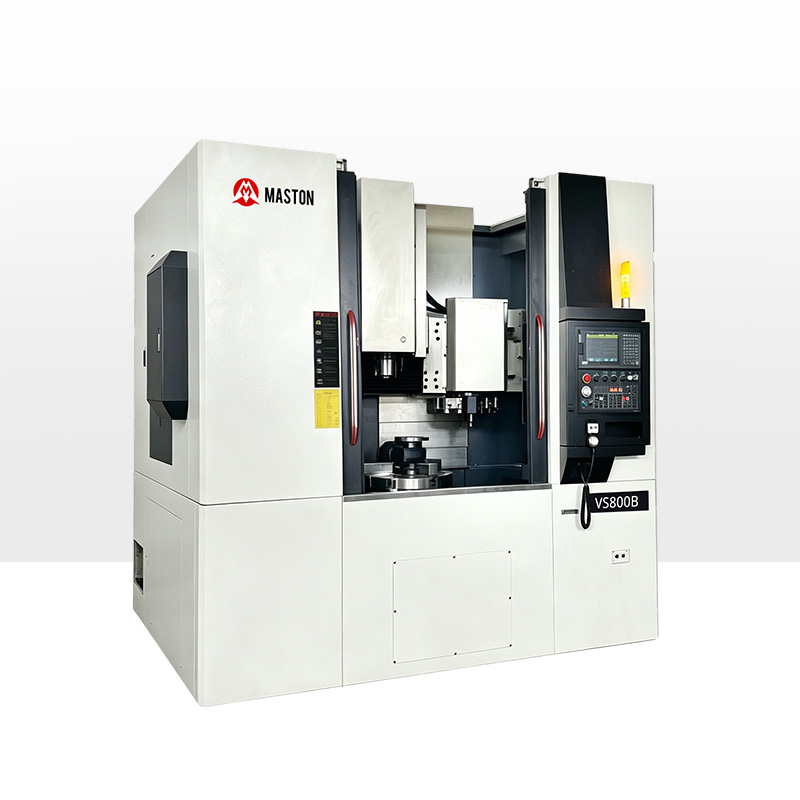

It boasts a compact design with a small footprint;
Operation is flexible and convenient;
An optional 16-tool magazine is available to accommodate the machining of complex components;
It features a modular spindle structure that requires no maintenance.
Parameter | Unit | VS-800B |
Stroke | X-axis | mm | 450 |
Z-axis | mm | 650 |
Y-axis | mm | 200 |
Machining Capacity | Maximum rotation diameter | mm | 800 |
Maximum machining diameter | mm | 700 |
Maximum machining height | mm | 650 |
Spindle Parameters | Spindle speed | rpm | 50-1000 |
Front bearing diameter | mm | φ160 |
Spindle axial runout | mm | 0.004 |
Spindle radial runout | mm | 0.003 |
Spindle output rated torque | N.M | 700 |
Motor | Power | Kw | 22 |
Drilling/Milling Spindle | Spindle speed | rpm | 6000 |
Power | Kw | 7.5 |
Tool holder type | | BT40 |
Tool Magazine | Specifications | | BT40-16T |
Chuck/Turret | Chuck type | | Chuck/Non-standard tooling |
Chuck specifications | inch | 21 |
Turret position | | Twelve workstations |
Guide rail | X-axis guide rail | mm | 45 |
Z-axis guide rail | mm | 55 |
Y-axis guide rail | mm | 35 |
Lead screw | X-axis lead screw | mm | φ50 |
Z-axis lead screw | mm | φ50 |
Y-axis lead screw | mm | φ32 |
Cooling/hydraulic | Cooling motor power | Kw | 0.45 |
Hydraulic motor power | Kw | 1.5 |
Factory precision | Positioning accuracy | mm | ±0.005 |
Repeatability | mm | ±0.003 |
Minimum movement unit | mm | 0.001 |
Indexing precision | Positioning accuracy | 。 | 0.015 |
Repeatability | 。 | 0.01 |
