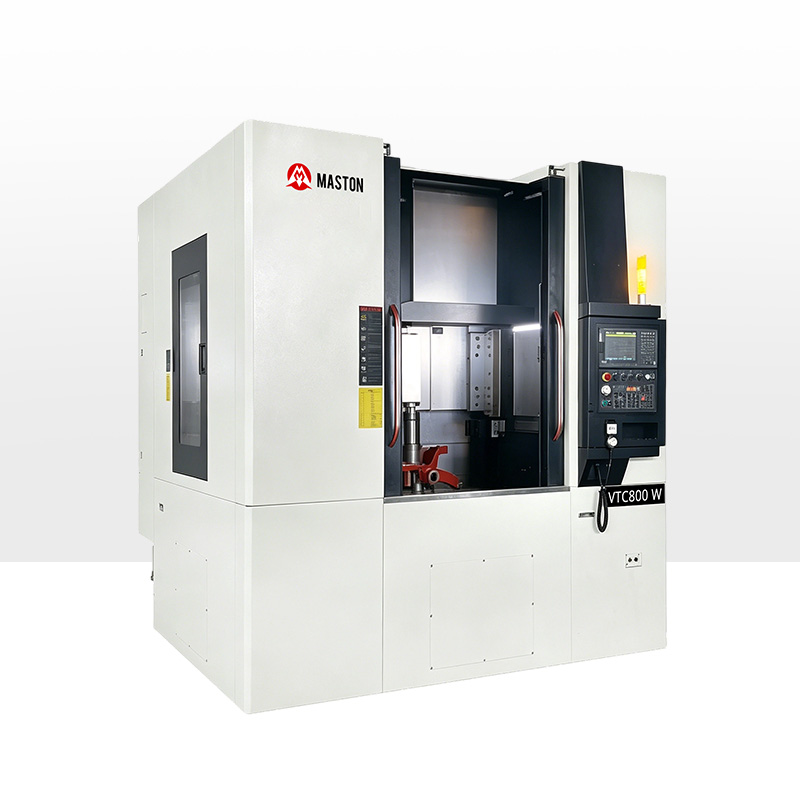

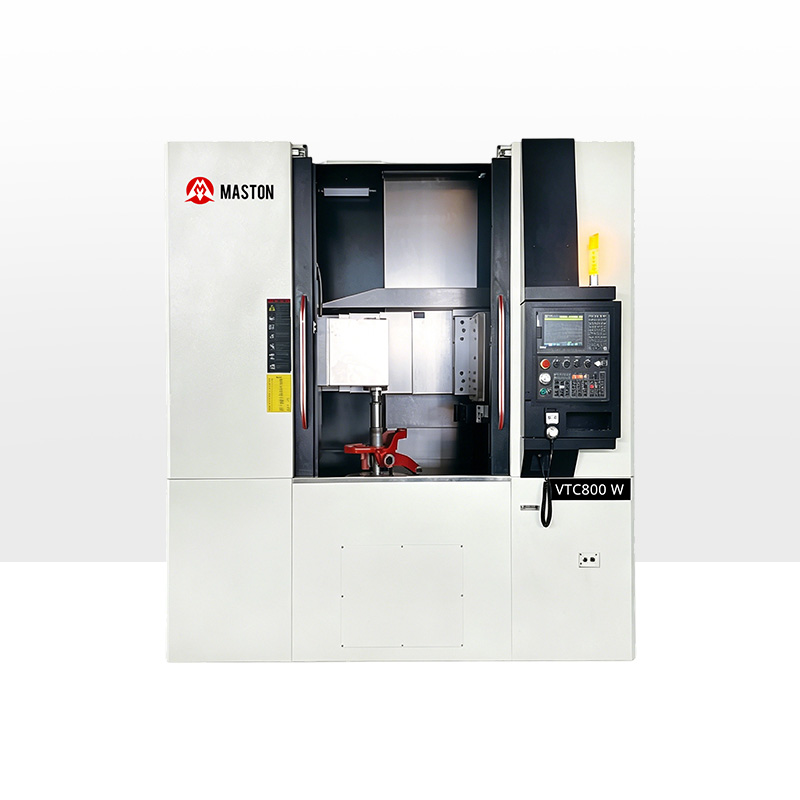

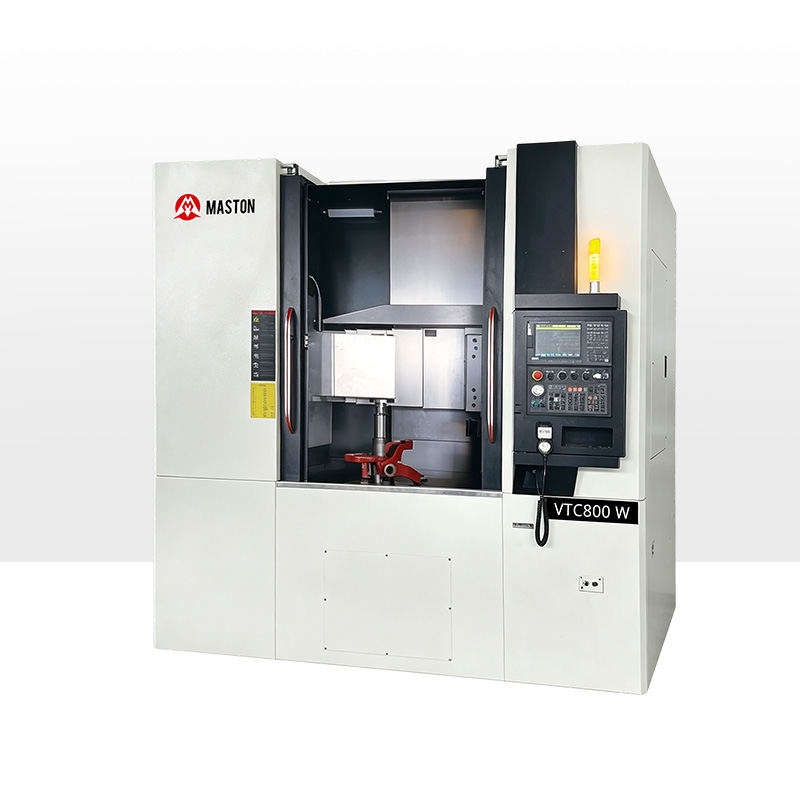

A horizontal tool tower is selected to process the external cylindrical surfaces, conical surfaces, end faces, grooves, and chamfers of parts in the turning process. Programmable CNC tailstock.
Parameter | Unit | VTC800 ·W |
Travel | X-axis | mm | 600 |
Z-axis | mm | 800 |
W-axis | mm | 650 |
Processing Capacity | Maximum turning diameter | mm | 950 |
Maximum turning diameter | mm | 900 |
Maximum turning height | mm | 800 |
Spindle Parameters | Spindle speed | rpm | 50-500 |
Front bearing diameter | mm | φ200 |
Spindle axial runout | mm | 0.005 |
Spindle radial runout | mm | 0.004 |
Rated torque of spindle output | N.M | 950 |
Main Motor | Power | Kw | 22 |
Chuck/Turret | Chuck type | | Three-jaw hydraulic self-centering chuck |
Chuck diameter | inch | 21 |
Tool turret position | | Twelve workstations |
Screw/Nut | X-axis guide | mm | 55 |
| Z-axis guide | mm | 55 |
| X-axis screw | mm | φ50 |
| Z-axis screw | mm | φ50 |
Cooling/Hydraulic | Cooling motor power | Kw | 0.75 |
Hydraulic motor power | Kw | 1.5 |
Factory Precision | Positioning accuracy | mm | ±0.008 |
Repeatability | mm | ±0.004 |
Minimum movement unit | mm | 0.001 |
Weight/Dimensions | Overall dimensions | mm | 2800×2200×3200 |
Machine tool weight | kg | 10000 |
