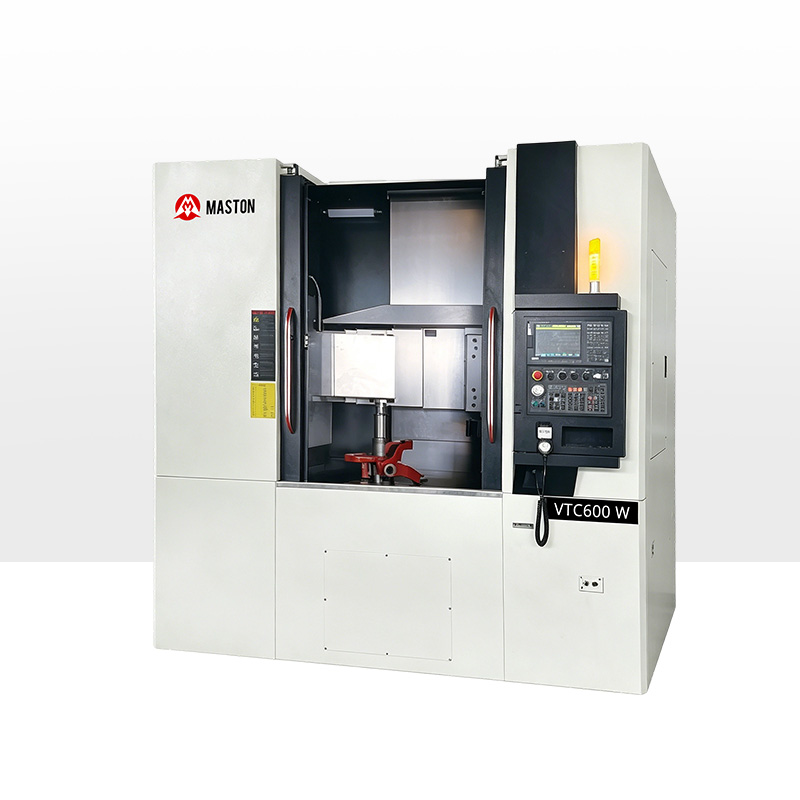

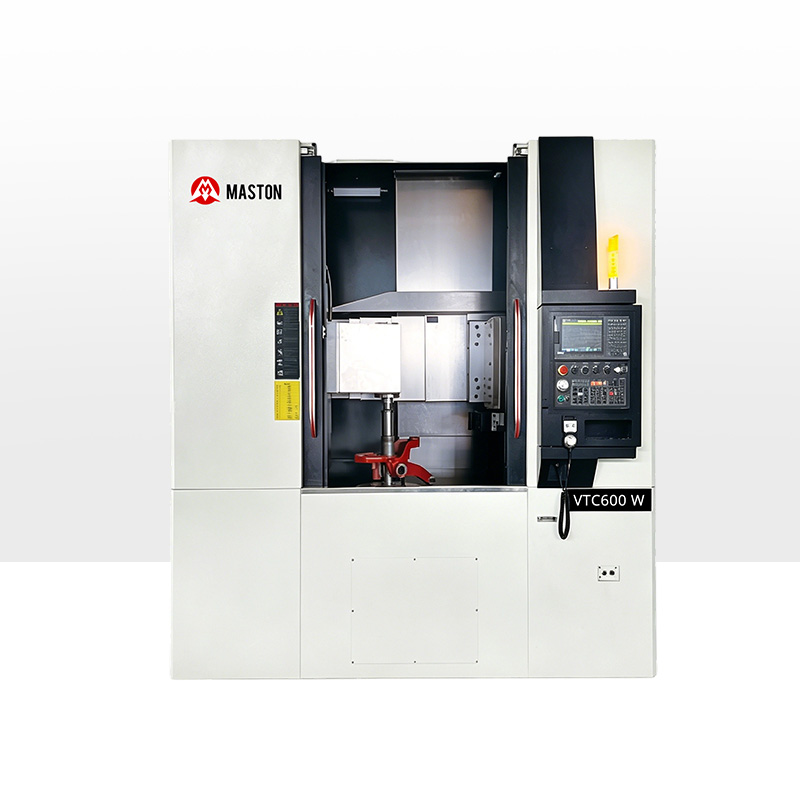

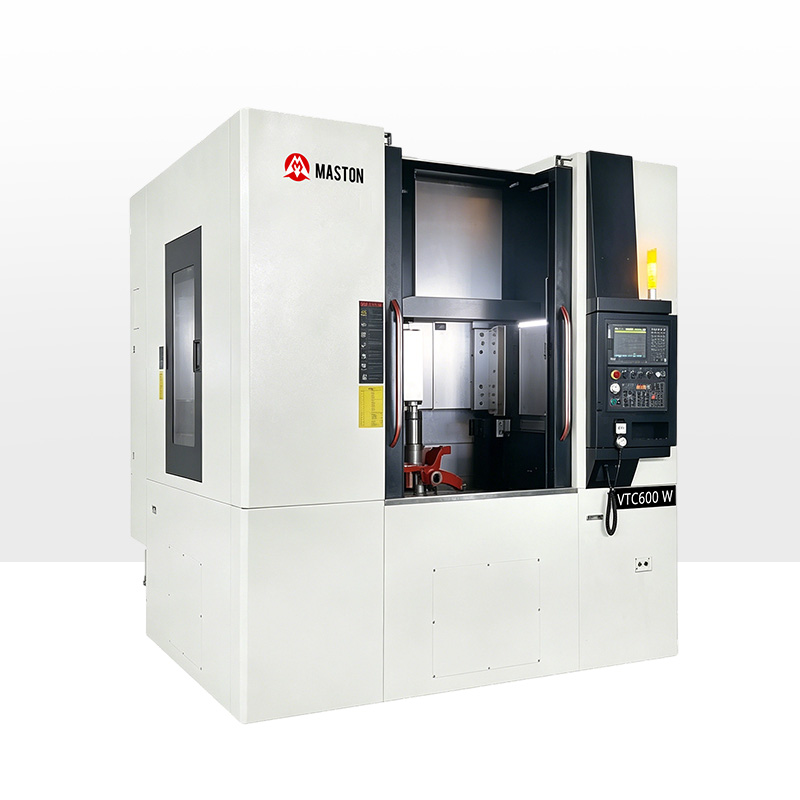

A horizontal tool tower is selected to process the external cylindrical surfaces, conical surfaces, end faces, grooves, and chamfers of parts in the turning process. Programmable CNC tailstock.
Parameter | Unit | VTC600 ·W |
Travel | X-axis | mm | 450 |
Z-axis | mm | 600 |
W-axis | mm | 500 |
Processing Capacity | Maximum turning diameter | mm | 600 |
Maximum turning diameter | mm | 600 |
Maximum turning height | mm | 500 |
Spindle Parameters | Spindle speed | rpm | 50-1000 |
Front bearing diameter | mm | φ130 |
Spindle axial runout | mm | 0.005 |
Spindle radial runout | mm | 0.003 |
Rated torque of spindle output | N.M | 440 |
Main Motor | Power | Kw | 18.5 |
Chuck/Turret | Chuck type | | Three-jaw hydraulic self-centering chuck |
Chuck diameter | inch | 15 |
Tool turret position | | Twelve workstations |
Screw/Nut | X-axis guide | mm | 45 |
| Z-axis guide | mm | 45 |
| X-axis screw | mm | φ40 |
| Z-axis screw | mm | φ40 |
Cooling/Hydraulic | Cooling motor power | Kw | 0.45 |
Hydraulic motor power | Kw | 1.5 |
Factory Precision | Positioning accuracy | mm | ±0.005 |
Repeatability | mm | ±0.003 |
Minimum movement unit | mm | 0.001 |
Weight/Dimensions | Overall dimensions | mm | 2450×1900×2900 |
Machine tool weight | kg | 6500 |
