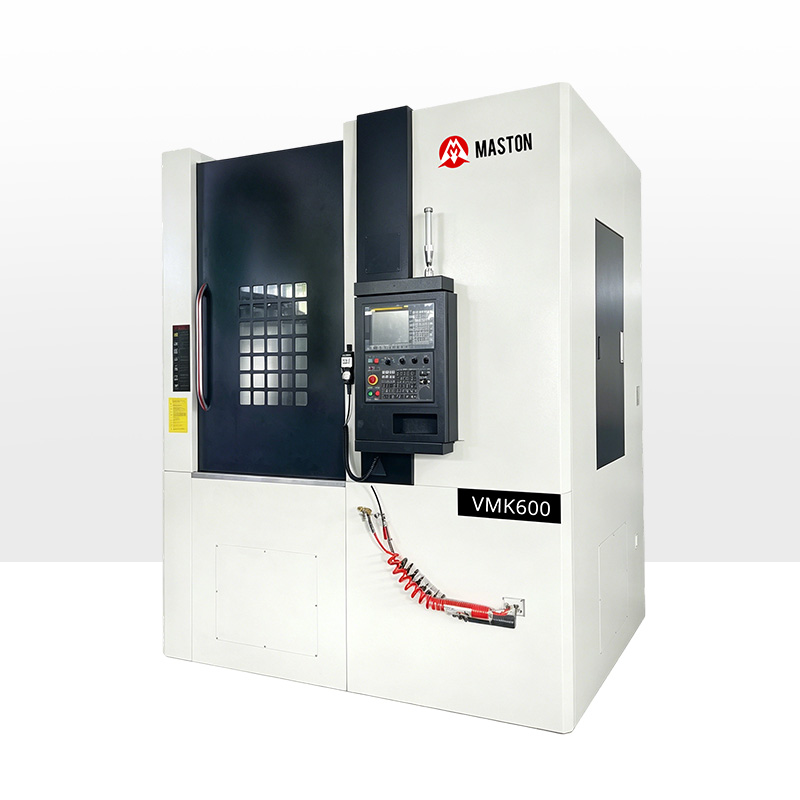

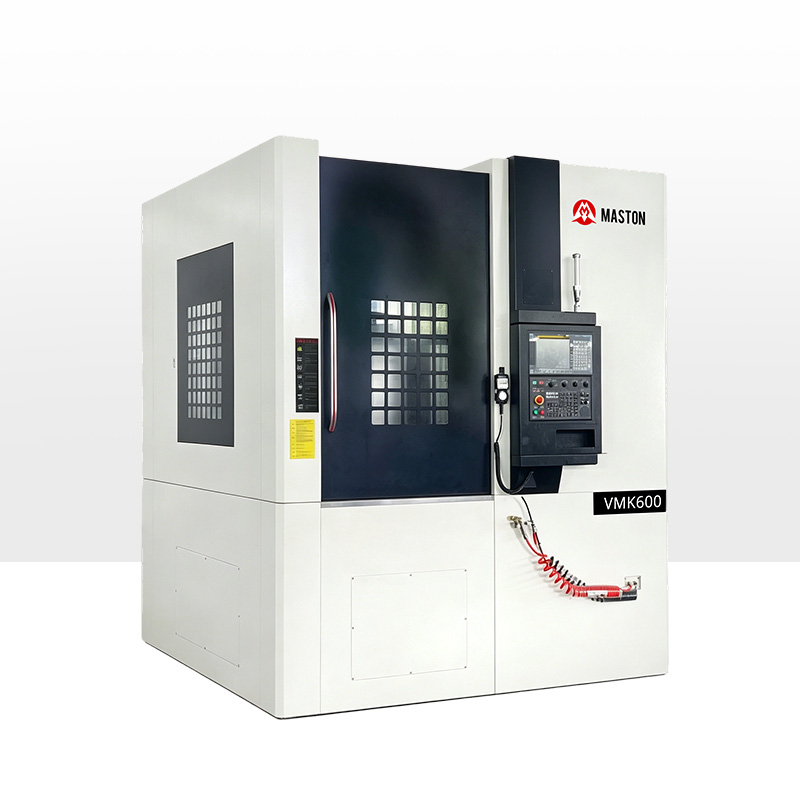

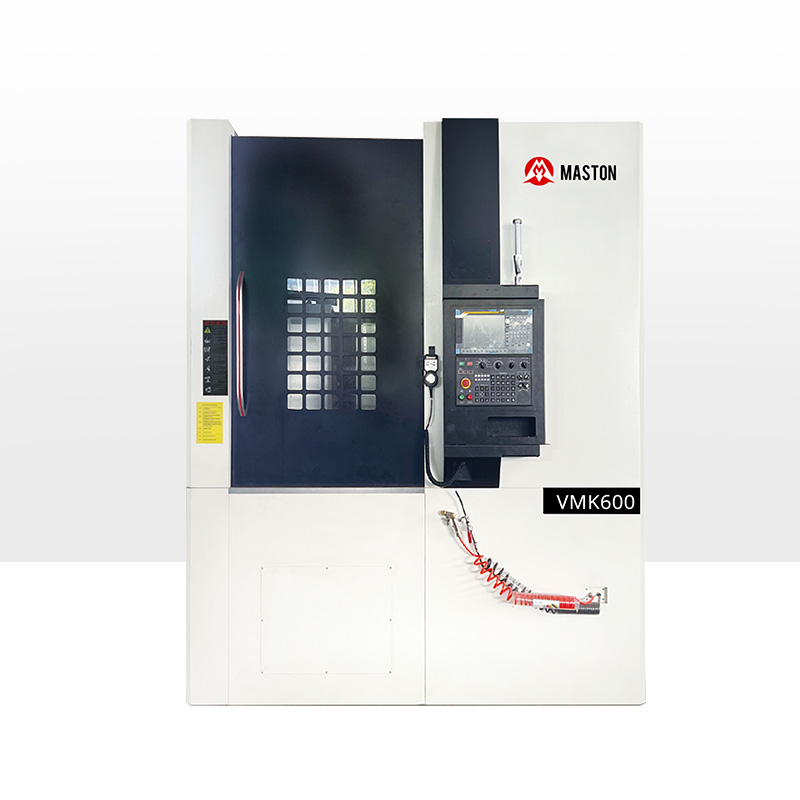

VMK600 CNC Vertical Grinding Machine

The VMK series vertical composite grinding machine is suitable for the internal holes, outer circles and end faces of single-piece or batched sleeve-type and irregular parts. The system separately controls the feed of the grinding wheel shaft. It can complete the reciprocating circular grinding of multiple gears, internal holes and end faces under the condition of a single installation of the workpiece.

Model:
VMK600
Brand:
MASTON

Availability:

Quantity:



Inquire Add to Basket

CNC Vertical Grinding Machine Vertical CNC lathe Vertical CNC turning machine CNC vertical boring lathe Vertical turning center

Product Description

It has functions such as automatic feed of the grinding wheel shaft, rough and fine grinding, automatic switching of workpiece speed, automatic grinding wheel adjustment and automatic compensation after adjustment, and automatic axial positioning of the workpiece.

Parameter		Unit	VMK600
Itinerary	X direction	mm	450
Itinerary	Z direction	mm	600
Processing capacity	Maximum turning diameter	mm	700
	Maximum turning diameter (for turning)	mm	600
	Maximum turning height	mm	600
Spindle parameters	Speed	rpm	50-1000
	Front bearing diameter	mm	φ130
	Axial runout of the main shaft	mm	0.003
	Radial runout of the main shaft	mm	0.003
	Rated output torque of the main shaft	N.M	400
Main motor	Power	Kw	15
Chuck / Tool tower	Clamping plate form		Three-jaw hydraulic self-centering chuck
	Clamping plate diameter	mm	φ400
	Power	Kw	30
	Speed	rpm	12000
	Spindle specification		HSK63
Screw/Slide Rail	X guide rail	mm	45
Screw/Slide Rail	Z guide rail	mm	45
Cooling / Hydraulic	X lead screw	mm	φ40
	Z lead screw	mm	φ40
	Cooling motor power	Kw	0.45
Factory accuracy	Hydraulic motor power	Kw	1.5
	Positioning accuracy	mm	±0.005
	Repeatability of positioning accuracy	mm	±0.003
	The smallest moving unit	mm	0.001
