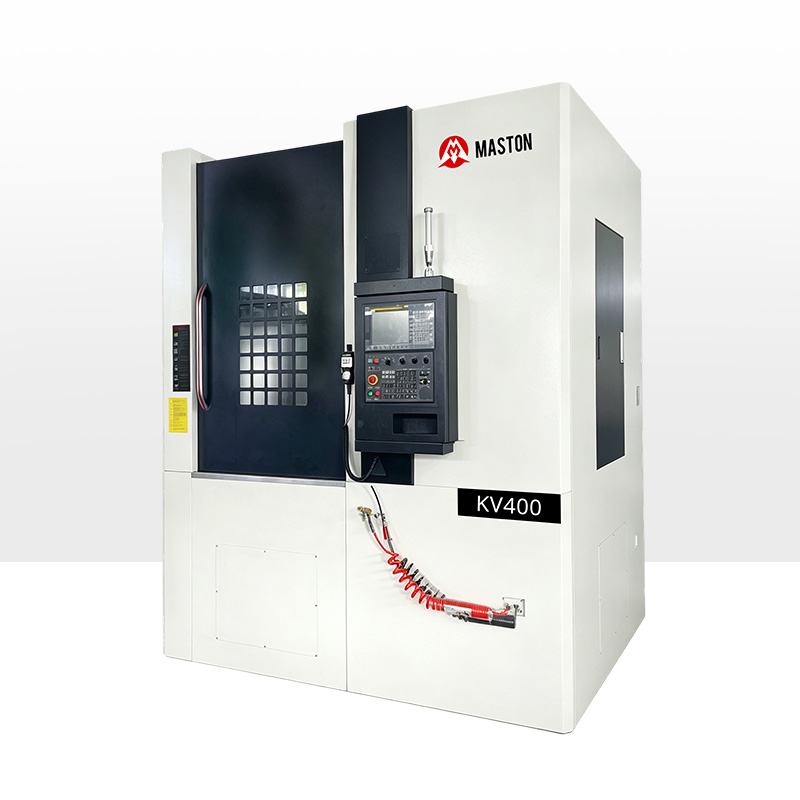

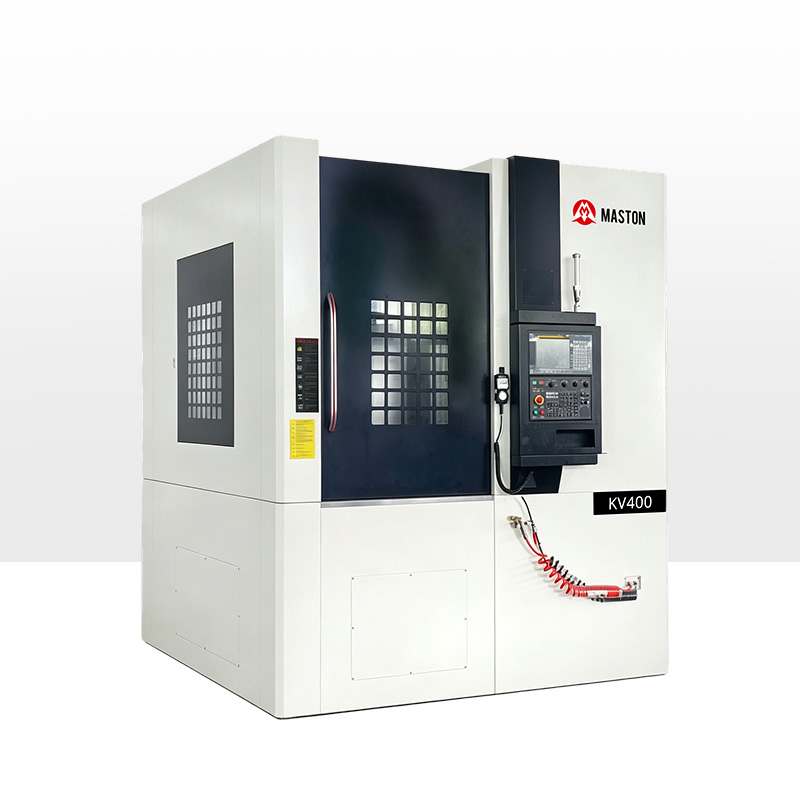

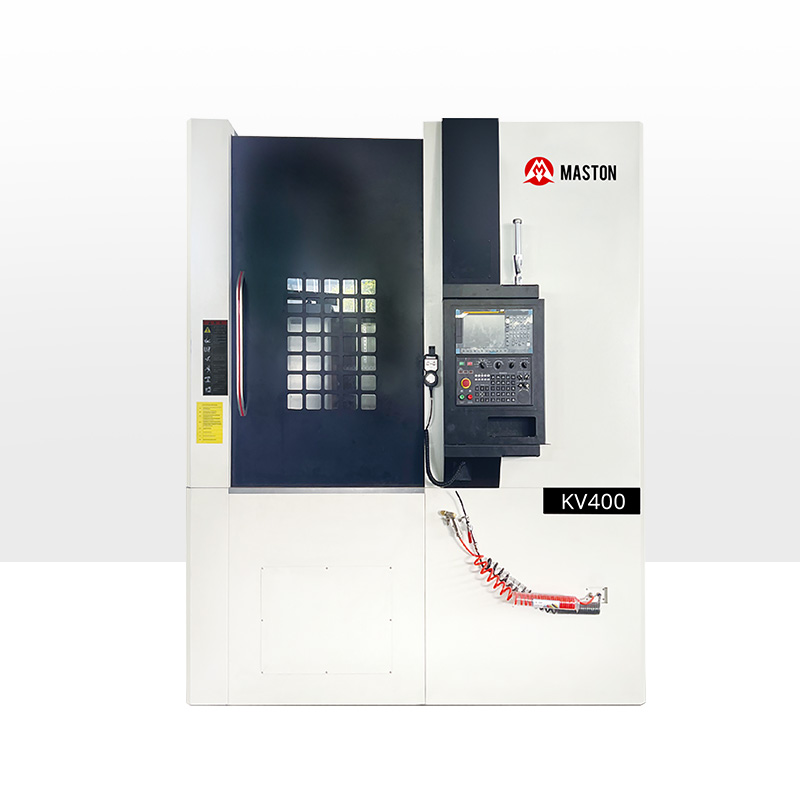

KV-400 Vertical Grinding Machine

The KV Series CNC Vertical Lathe features a moving-column structural design and offers a choice between horizontal and vertical tool turrets. It is designed for turning operations involving the machining of internal and external cylindrical surfaces, conical surfaces, end faces, grooves, and chamfers.

Model:
KV-400
Brand:
MASTON

Availability:

Quantity:



Inquire Add to Basket

Vertical Grinding Machine Vertical CNC lathe Vertical CNC turning machine Vertical turning center CNC vertical boring lathe

Product Description

Stable Structure | High Precision & High Efficiency:
Flexible Selection of Vertical or Horizontal Tool Turrets:
Ideal for high-speed precision machining.

Parameter		Unit	KV-400
Itinerary	X direction	mm	350
Itinerary	Z direction	mm	450
Processing capacity	Maximum turning diameter	mm	500
	Maximum turning diameter (for turning)	mm	400
	Maximum turning height	mm	450
Spindle parameters	Speed	rpm	50-1500
	Front bearing diameter	mm	φ130
	Axial runout of the spindle	mm	0.003
	Radial runout of the spindle	mm	0.003
	Rated output torque of the spindle	N.M	236
Main motor	Power	Kw	18.5
Chucks / Tool Towers	Cutter holder form		Three-jaw hydraulic self-centering chuck
	Cutter holder diameter	inch	12in
	Tool tower station		Twelve workstations
Screw/Slide Rail	X-direction guide rail	mm	35
	Z-direction guide rail	mm	45
	X-direction lead screw	mm	φ40
	Z-direction lead screw	mm	φ40
Cooling / Hydraulic	Cooling motor power	Kw	0.45
Cooling / Hydraulic	Hydraulic motor power	Kw	1.5
Factory accuracy	Positioning accuracy	mm	±0.005
	Repeatability of positioning accuracy	mm	±0.003
	Minimum movement unit	mm	0.001
