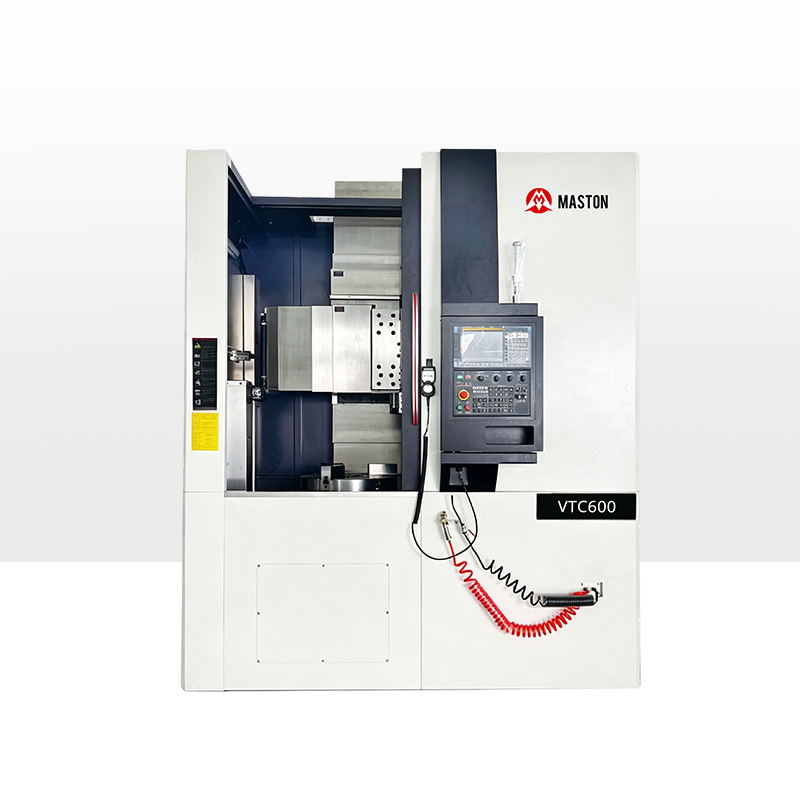

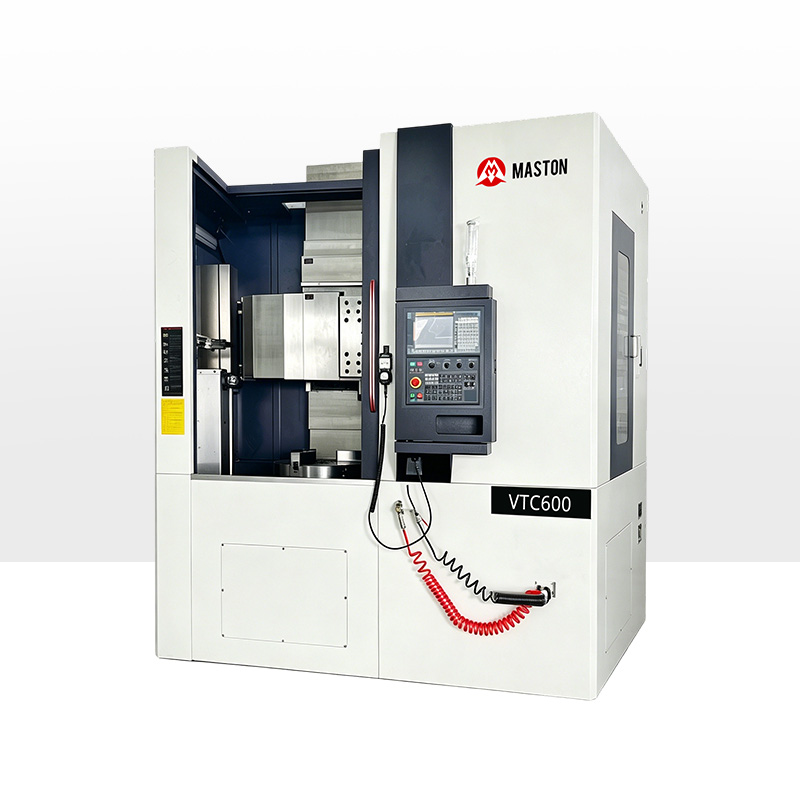

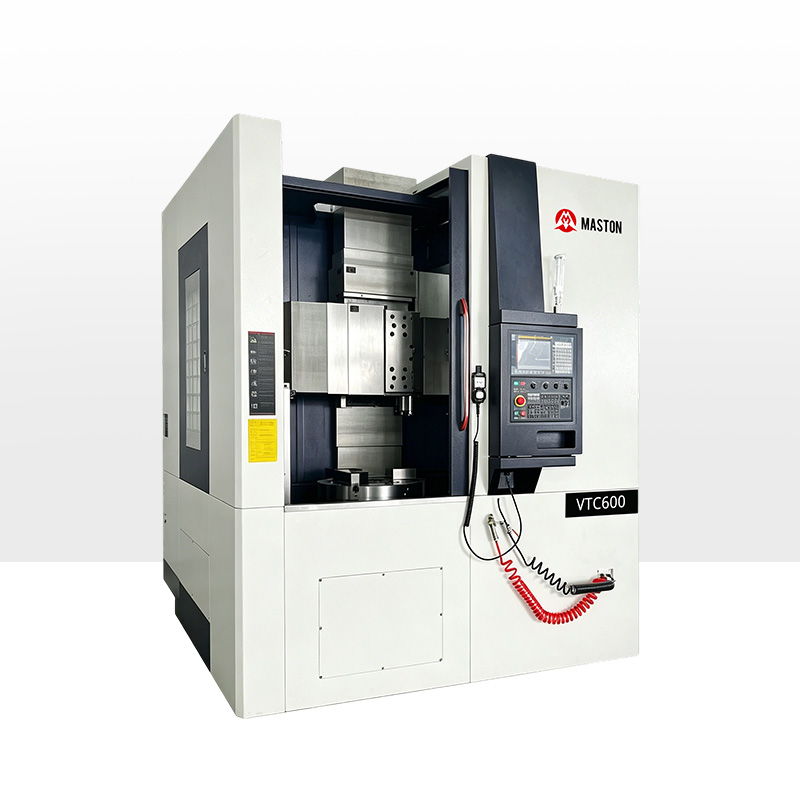

Stable structure and simple operation;
Flexible selection of vertical or horizontal tool turrets;
Integrated spindle unit design requiring no maintenance.
Parameter | Unit | VTC-600 |
Stroke | X-axis | mm | 450 |
Z-axis | mm | 600 |
Machining Capacity | Maximum swing diameter | mm | 700 |
Maximum turning diameter | mm | 600 |
Maximum turning height | mm | 600 |
Spindle Parameters | Spindle speed | rpm | 50-1000 |
Front bearing diameter | mm | φ130 |
Spindle axial runout | mm | 0.003 |
Spindle radial runout | mm | 0.003 |
Spindle output rated torque | N.M | 590 |
Main Motor | Power | Kw | 18.5 |
Chuck/Turret | Chuck type | | Three-jaw hydraulic self-centering chuck |
Chuck diameter | mm | 15 |
Turret position | | Twelve workstations |
Lead Screw/Guide Rail | X-axis guide rail | mm | 45 |
Z-axis guide rail | mm | 45 |
X-axis lead screw | mm | φ40 |
Z-axis lead screw | mm | φ40 |
Cooling/Hydraulics | Cooling motor power | Kw | 0.45 |
Hydraulic motor power | Kw | 1.5 |
Factory Accuracy | Positioning accuracy | mm | ±0.005 |
Repeatability | mm | ±0.003 |
Minimum movement unit | mm | 0.001 |
Dimensions/Weight | Overall dimensions | mm | 1950×1860×2800 |
Machine weight | kg | 6500 |
