Stable Structure | High Precision & High Efficiency:
Flexible Selection of Vertical or Horizontal Tool Turrets:
Ideal for high-speed precision machining.

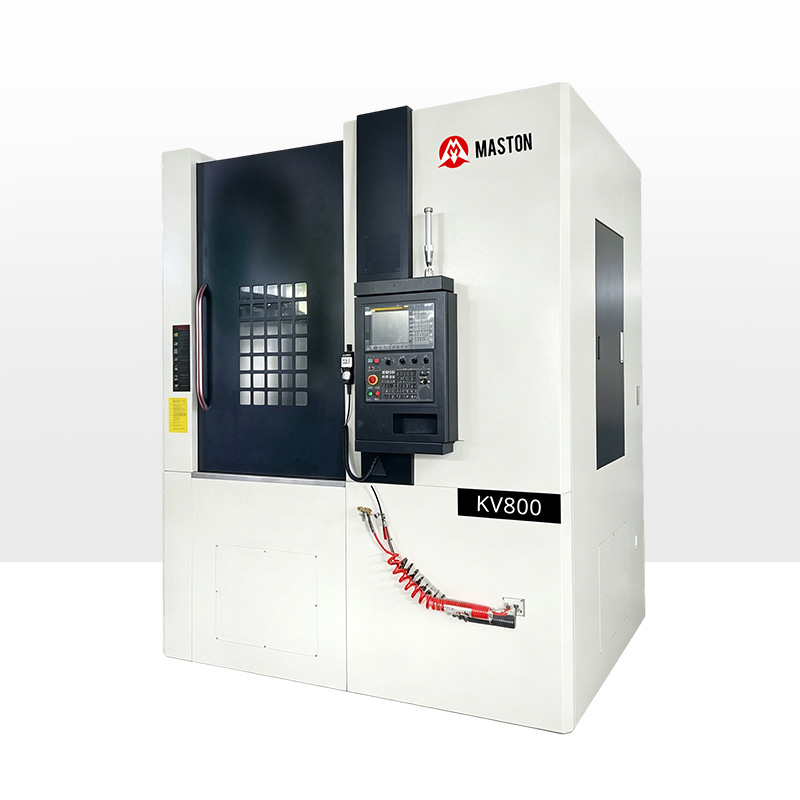

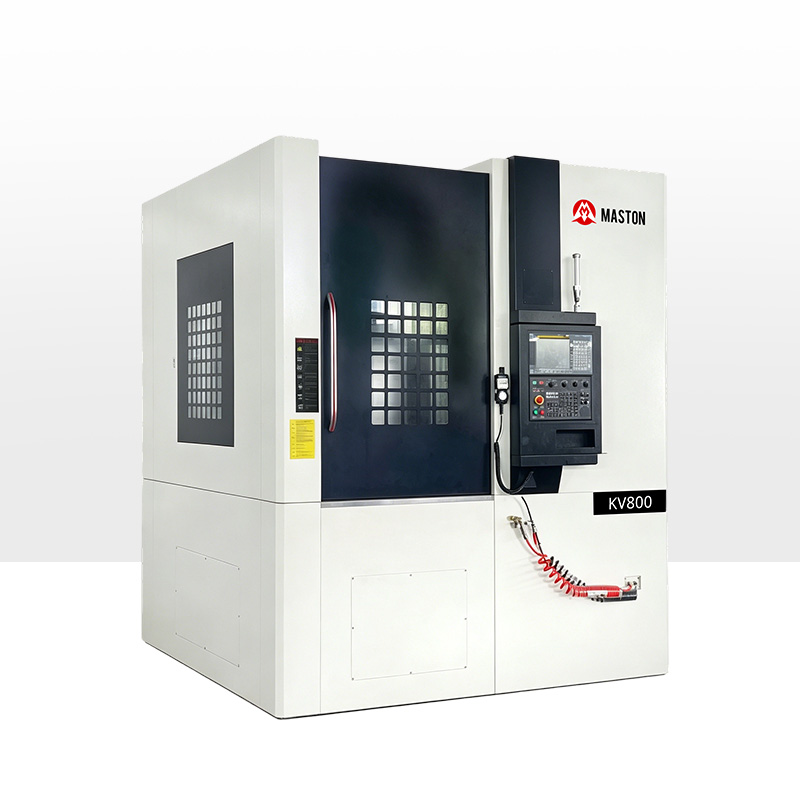

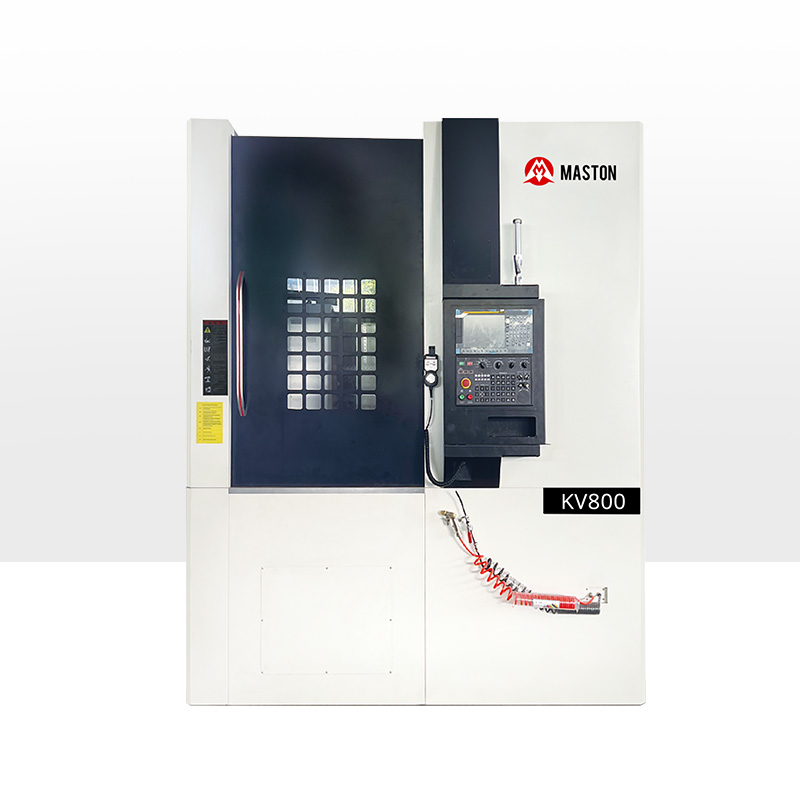

Parameter | Unit | KV-800 |
Itinerary | X direction | mm | 600 |
Z direction | mm | 700 |
Processing capacity | Maximum turning diameter | mm | 900 |
Maximum turning diameter (for turning) | mm | 800 |
Maximum turning height | mm | 700 |
Spindle parameters | Speed | rpm | 50-800 |
Front bearing diameter | mm | φ200 |
Axial runout of the spindle | mm | 0.005 |
Radial runout of the spindle | mm | 0.005 |
Rated output torque of the spindle | N.M | 950 |
Main motor | Power | Kw | 30 |
Chucks / Tool Towers | Cutter holder form | | Three-jaw hydraulic self-centering chuck |
Cutter holder diameter | inch | φ630 |
Tool tower station | | Four stations / Twelve stations |
Screw/Slide Rail | X-direction guide rail | mm | 45 |
Z-direction guide rail | mm | 55 |
X-direction lead screw | mm | φ40 |
Z-direction lead screw | mm | φ50 |
Cooling / Hydraulic | Cooling motor power | Kw | 0.75 |
Hydraulic motor power | Kw | 1.5 |
Factory accuracy | Positioning accuracy | mm | ±0.008 |
Repeatability of positioning accuracy | mm | ±0.004 |
Minimum movement unit | mm | 0.001 |
