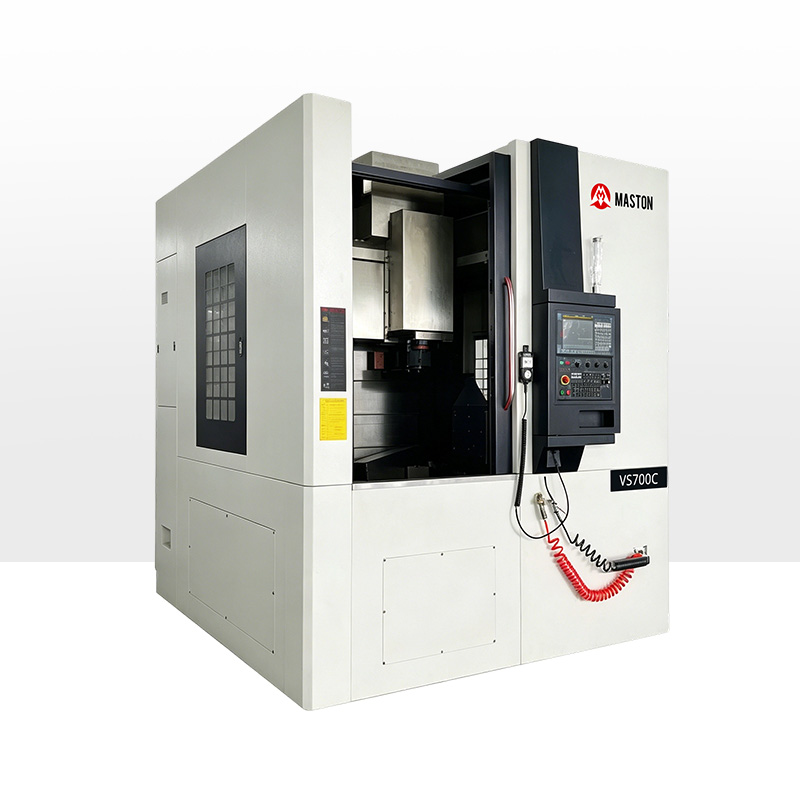

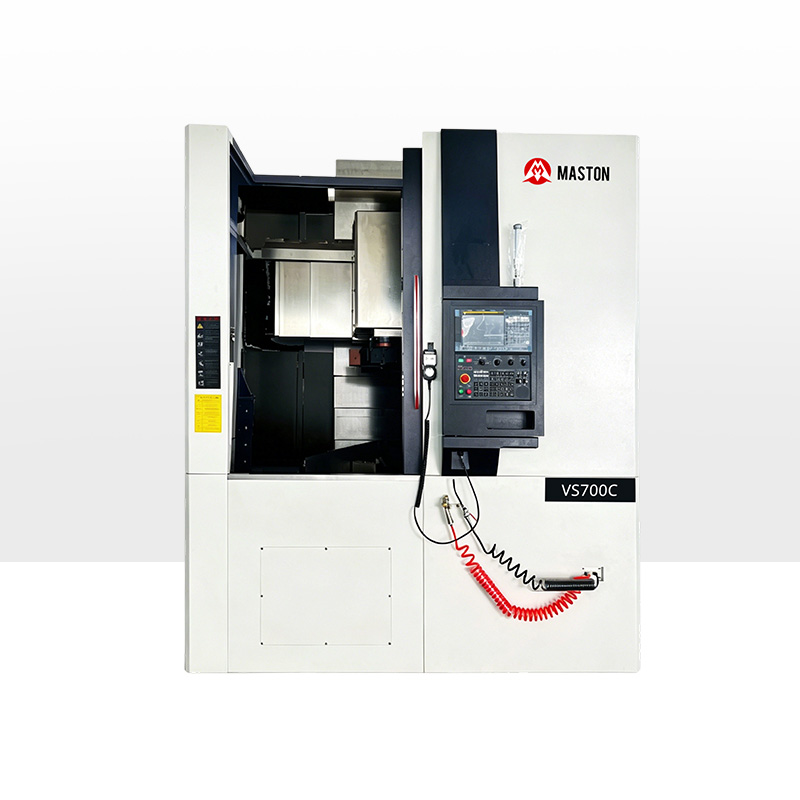

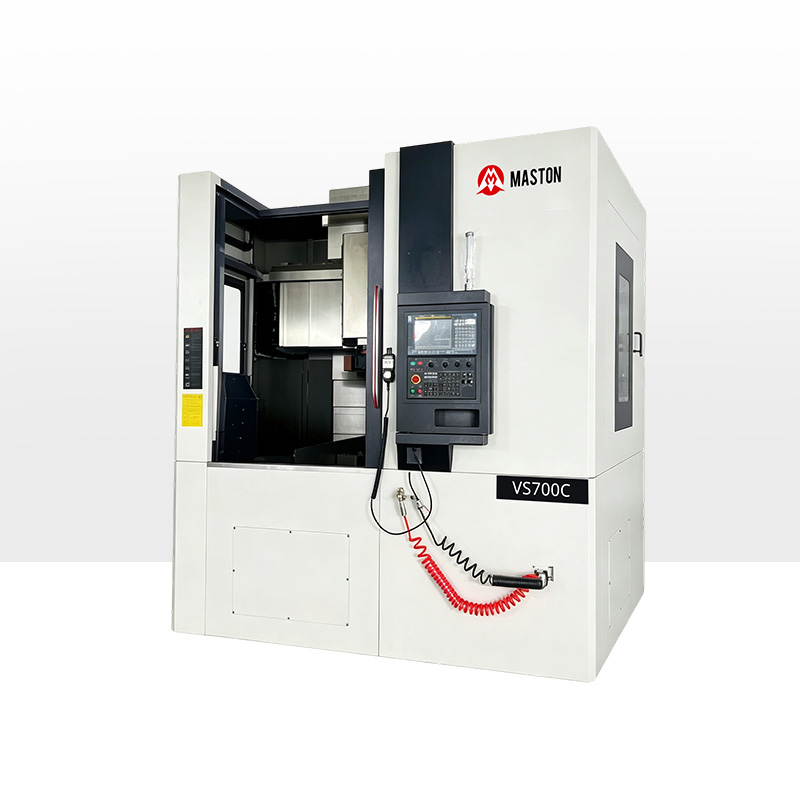

VS-700C Vertical Machining Center

The VS·C Series Vertical Turning-Milling Center features a standard vertical lathe configuration equipped with a powered tool turret. It is designed to perform turning operations—including machining internal and external cylindrical surfaces, conical surfaces, end faces, grooving, and chamfering—as well as milling and grinding operations such as face drilling and tapping.

Model:
VS -700C
Brand:
MASTON

Availability:

Quantity:



Inquire Add to Basket

Vertical machining center Vertical CNC turning machine Precision vertical CNC lathe Metal vertical CNC lathe CNC vertical turning lathe CNC vertical boring lathe

Product Description

Stable structure and simple operation:
12-position tool turret, allowing for flexible combinations of powered tool holders and standard turning tool holders:
Capable of machining complex components:
Integrated spindle unit design, requiring no maintenance.

Parameter		Unit	VS -700C
Stroke	X-axis	mm	500
Stroke	Z-axis	mm	650
Machining Capacity	Maximum swing diameter	mm	800
	Maximum turning diameter	mm	700
	Maximum turning height	mm	650
	Spindle speed	rpm	50-1000
	Front bearing diameter	mm	φ160
Spindle Parameters	Spindle axial runout	mm	0.003
	Spindle radial runout	mm	0.003
	Spindle output rated torque	N.M	700
Main Motor	Power	Kw	22
Chuck/Turret	Chuck type
	Chuck diameter	mm	φ500
	Turret position		Twelve workstations
	Tool holder		□32/φ50
	Power tool holder		BMT65
	X-axis guide rail	mm	45
	Z-axis guide rail	mm	45
Lead Screw/Guide Rail	Z-axis lead screw	mm	φ40
Lead Screw/Guide Rail	X-axis lead screw	mm	φ40
Cooling/Hydraulics	Cooling motor power	Kw	0.45
Cooling/Hydraulics	Hydraulic motor power	Kw	1.5
Factory Precision	Positioning accuracy	mm	±0.005
	Repeatability	mm	±0.003
	Minimum movement unit	mm	0.001
Weight	Overall dimensions	mm	2150×1955×2950
Weight	Machine weight	mm	7500
