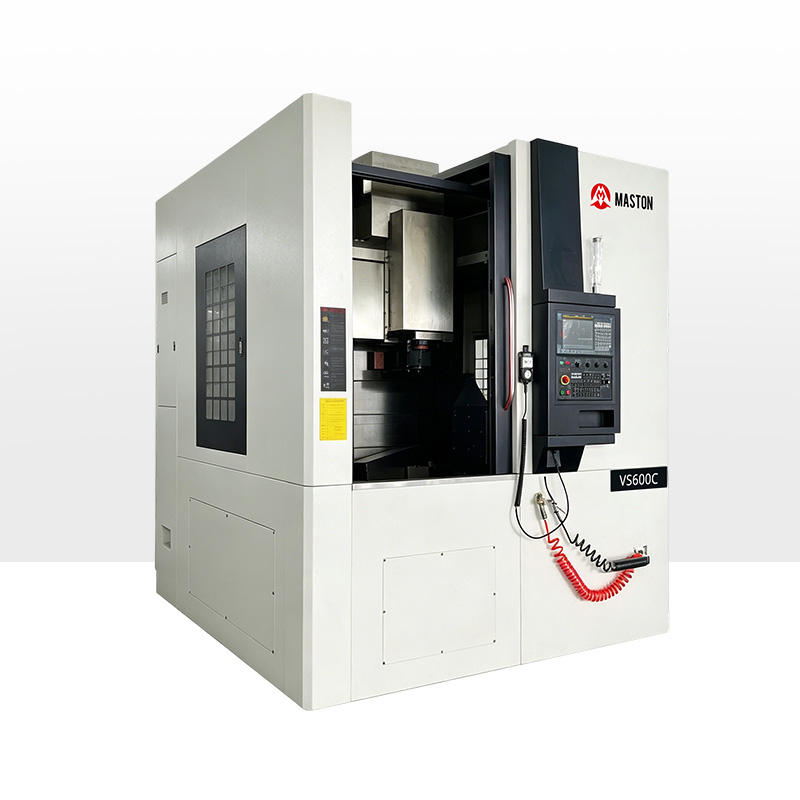

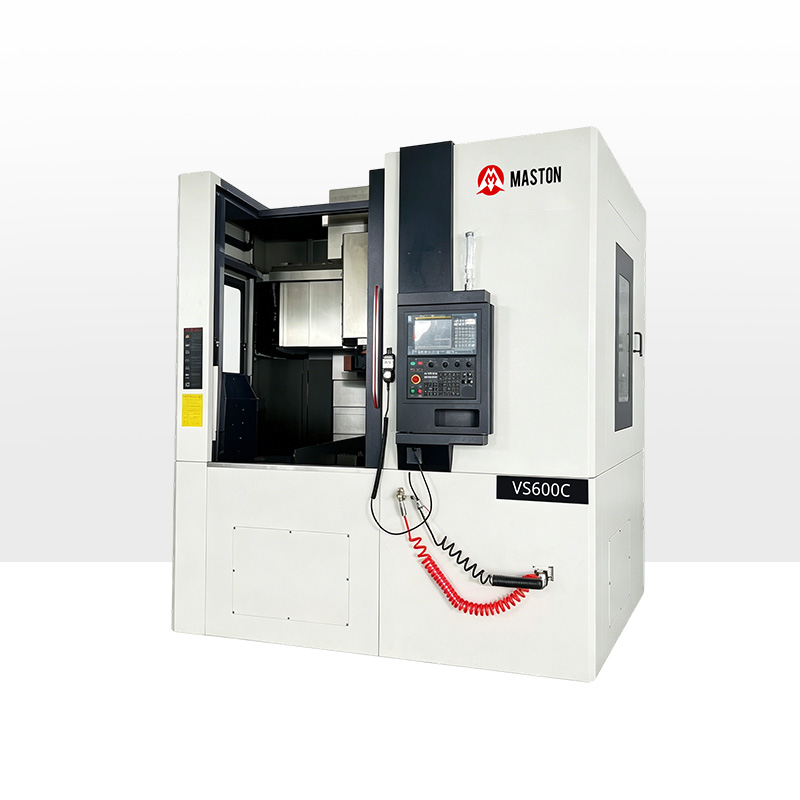

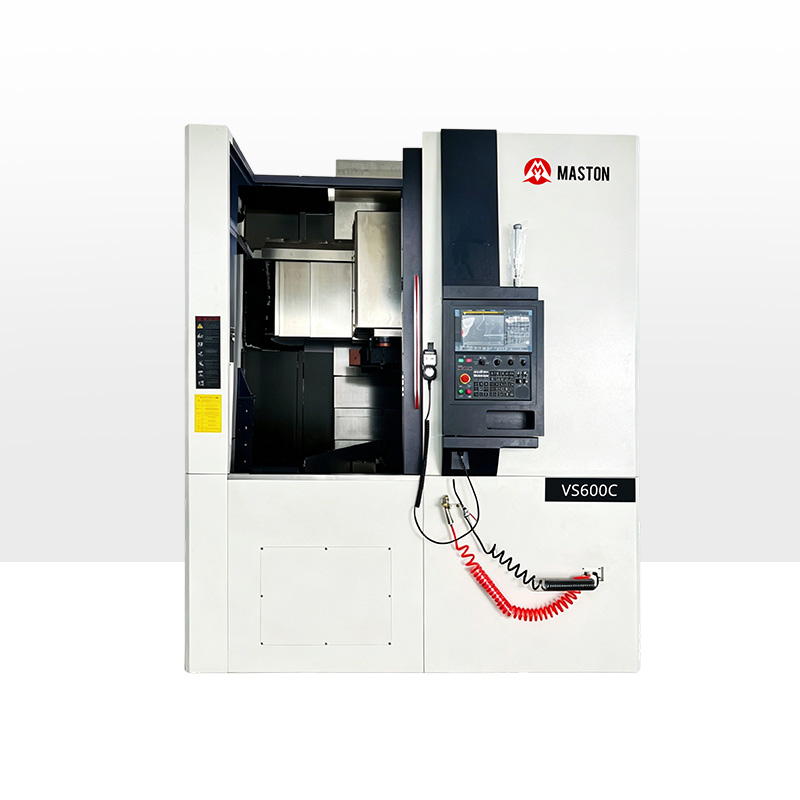

VS-600C Vertical Machining Center

The VS·C Series Vertical Turning-Milling Center features a standard vertical lathe configuration equipped with a powered tool turret. It is designed to perform turning operations—including machining internal and external cylindrical surfaces, conical surfaces, end faces, grooving, and chamfering—as well as milling and grinding operations such as face drilling and tapping.

Model:
VS-600C
Brand:
MASTON

Availability:

Quantity:



Inquire Add to Basket

Vertical machining center Vertical CNC turning machine Vertical CNC lathe Automatic vertical CNC lathe Metal vertical CNC lathe CNC vertical turning lathe

Product Description

Stable structure and simple operation:
12-position tool turret, allowing for flexible combinations of powered tool holders and standard turning tool holders:
Capable of machining complex components:
Integrated spindle unit design, requiring no maintenance.

Parameter		Unit	VS -600C
Stroke	X-axis	mm	450
Stroke	Z-axis	mm	600
Machining Capacity	Maximum swing diameter	mm	700
	Maximum turning diameter	mm	600
	Maximum turning height	mm	600
	Spindle speed	rpm	50-1000
	Front bearing diameter	mm	φ130
Spindle Parameters	Spindle axial runout	mm	0.003
	Spindle radial runout	mm	0.003
	Spindle output rated torque	N.M	590
Main Motor	Power	Kw	18.5
Chuck/Turret	Chuck type
	Chuck diameter	mm	φ400
	Turret position		Twelve workstations
	Tool holder		□32/φ50
	Power tool holder		BMT55
	X-axis guide rail	mm	45
	Z-axis guide rail	mm	45
Lead Screw/Guide Rail	Z-axis lead screw	mm	φ40
Lead Screw/Guide Rail	X-axis lead screw	mm	φ40
Cooling/Hydraulics	Cooling motor power	Kw	0.45
Cooling/Hydraulics	Hydraulic motor power	Kw	1.5
Factory Precision	Positioning accuracy	mm	±0.005
	Repeatability	mm	±0.003
	Minimum movement unit	mm	0.001
Weight	Overall dimensions	mm	950×1860×2800
Weight	Machine weight	mm	6500
