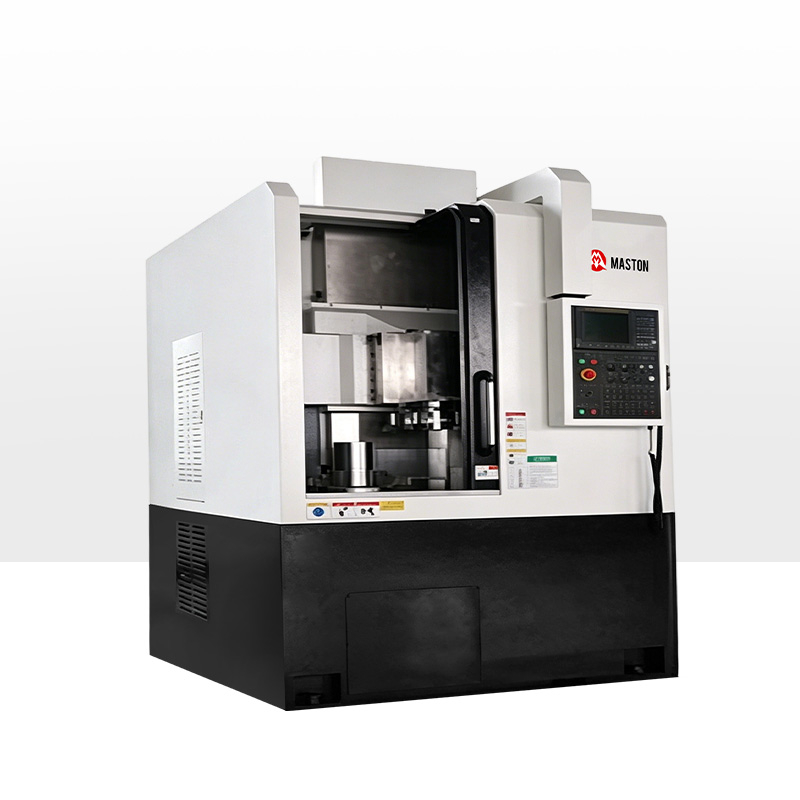

VS-1250F Square Ram Type CNC Vertical Lathe

VS·F series square slide-type CNC vertical lathes. The machine adopts the ATC + C structure, with square slide and BT tool holder interface. It is used for processing the internal and external cylindrical surfaces, conical surfaces, end faces, grooves, chamfers, and other turning processes of parts, as well as end face drilling, tapping, and other milling processes.

Model:
VS-1250F
Brand:
MASTON

Availability:

Quantity:



Inquire Add to Basket

Square Ram Type CNC Vertical Lathe CNC vertical machining lathe Metal vertical CNC lathe Automatic vertical CNC lathe Vertical CNC lathe

Product Description

ATC+C structure
12-position tool magazine:
BT tool holder

Parameter		Unit	VS - 1250F
Stroke	X direction	mm	700
	Z direction	mm	850
	Z' direction	mm	800
Machining Capacity	Maximum swing diameter	mm	φ1250
	Maximum turning diameter	mm	φ1100
	Maximum turning height	mm	850
Spindle Parameters	Spindle speed	rpm	50-500
	Front bearing diameter	mm	φ200
	Spindle output rated torque	NM	950/2800(gearbox)
	Power	KW	30
Table	Chuck type		Four-jaw manual chuck
Table	Chuck diameter	inch/mm	32inch
Tools	Turret type		ATC+C
Tools	Number of tools	pcs	12
Lead Screw/Guide Rail	X-axis guide rail	mm	55
	Z-axis guide rail	mm	55
	Sleeper dimensions	mm	260×260
	X-axis lead screw	mm	φ50
	Z-axis lead screw	mm	φ50
	Z'-axis lead screw	mm	φ50
Traction Parameters	Rapid traverse speed	m/min	10
Traction Parameters	Minimum movement unit	mm	0.001
