The dual-saddle configuration allows for flexible combinations of tool turrets, linear tool arrays, and BT spindles:
An optional 16-position tool magazine is available to accommodate the machining of complex components;
The modular spindle unit features a maintenance-free design.

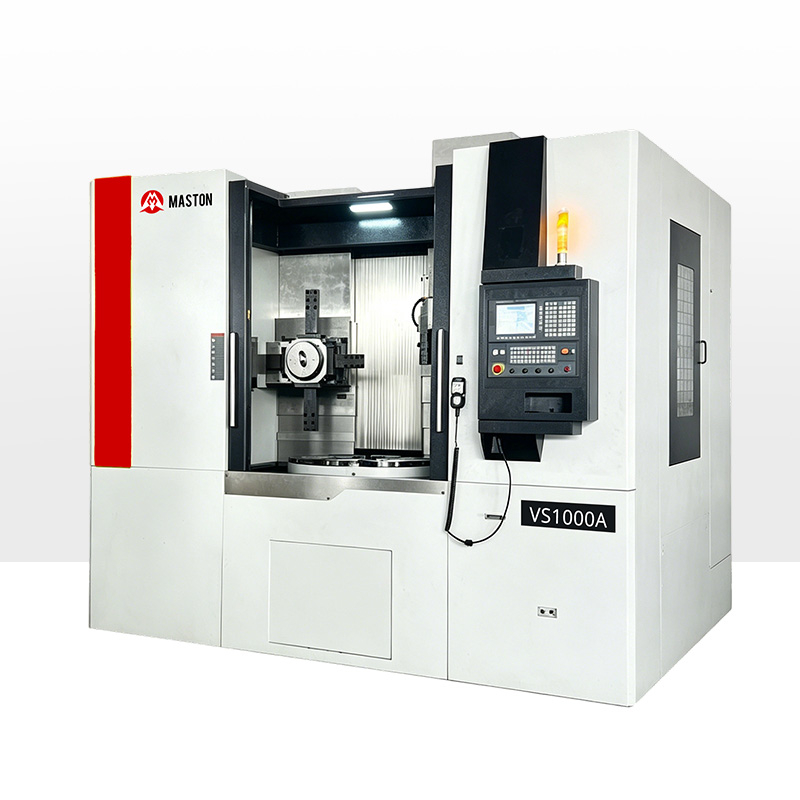

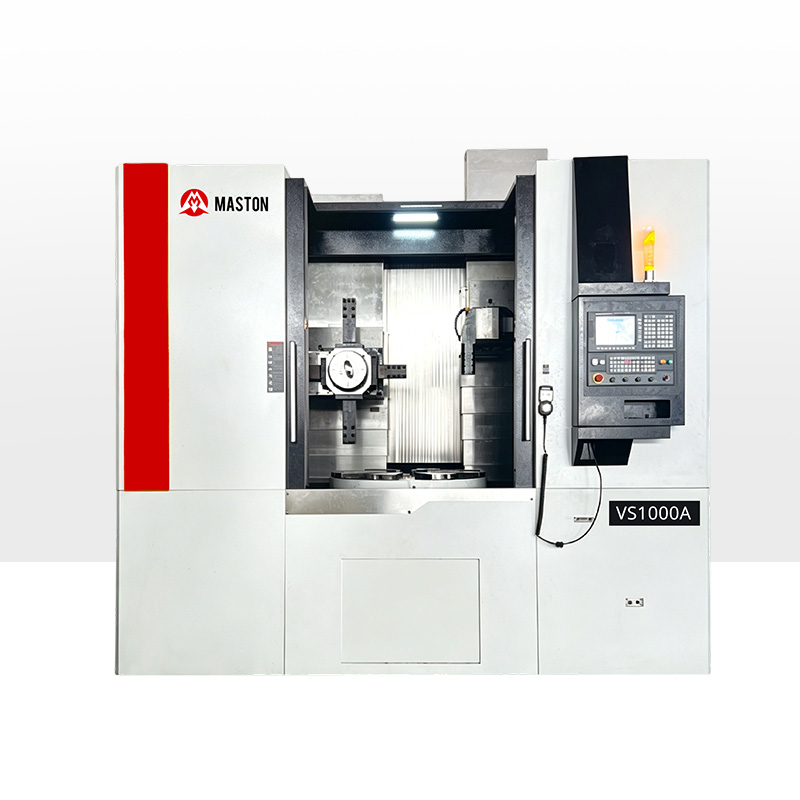

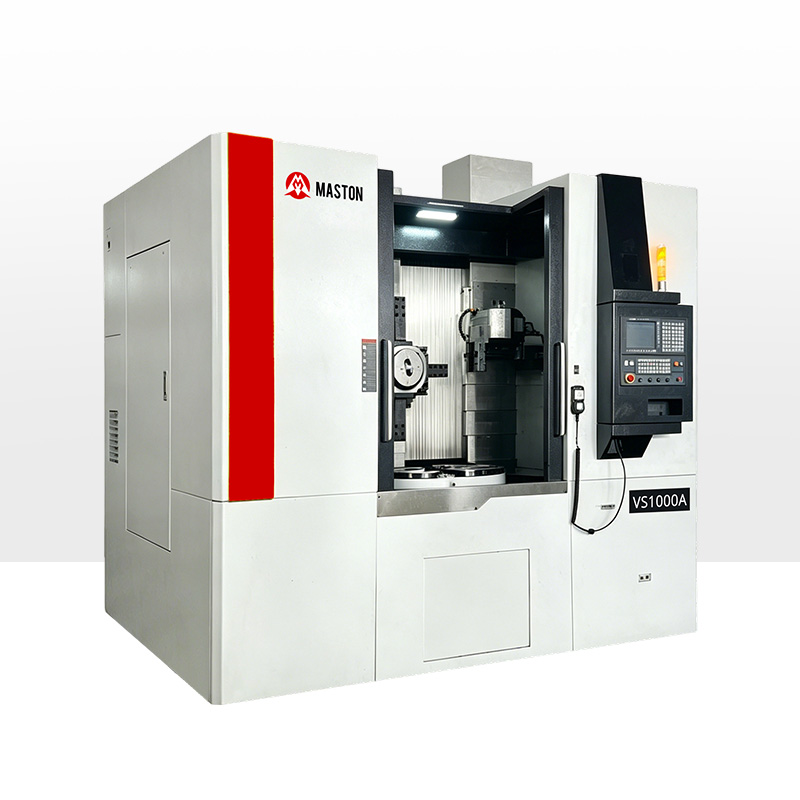

Parameter | Unit | VS-1000A |
Stroke | X1 direction | mm | 850 |
X2 direction | mm | 650 |
Z1 direction | mm | 800 |
Z2 direction | mm | 800 |
Machining Capacity | Maximum turning diameter | mm | 1100 |
Maximum machining diameter | mm | 1000 |
Maximum machining height | mm | 800 |
Spindle Parameters | Spindle speed | rpm | 50-800 |
Front bearing diameter | mm | φ200 |
Spindle axial runout | mm | 0.005 |
Spindle radial runout | mm | 0.003 |
Spindle output rated torque | N.M | 950 |
Drilling and milling spindle speed | rpm | 6000 |
Drilling and milling spindle specifications | BT | 40-150 |
Motor | Spindle motor power | KW | 30 |
Drilling and milling spindle motor power | KW | 7.5 |
Chuck/Turret | Chuck type | | Three-jaw hydraulic self-centering chuck |
Chuck diameter | inch | 24 |
Turret position | | Twelve workstations |
Tool Magazine | Disc type | | BT40-16T |
Lead Screw/Guide Rail | X-axis guide rail | mm | 55 |
Z-axis guide rail | mm | 55 |
X-axis lead screw | mm | φ50 |
Z-axis lead screw | mm | φ50 |
Factory Precision | Positioning accuracy | mm | ±0.008 |
Repeatability | mm | ±0.004 |
Minimum movement unit | mm | 0.001 |
Spindle indexing positioning accuracy | 。 | 0.01° |
Spindle indexing repeatability | | 0.008° |
Spindle minimum indexing unit | 。 | 0.001° |
Machine Weight | Machine weight | kg | 16000 |
