Characteristics of Horizontal Machining Center
Horizontal spindle layout, equipped with rotary worktable
One clamping completes multi-sided machining, less positioning error
High rigidity and shock resistance, suitable for heavy cutting
Smooth chip removal, good cooling effect
Automatic tool change, high processing efficiency
Support 4-axis linkage, process complex box parts
Double worktable optional, realize loading and processing simultaneously
High machining accuracy and stable batch product quality
Large floor space, high equipment cost

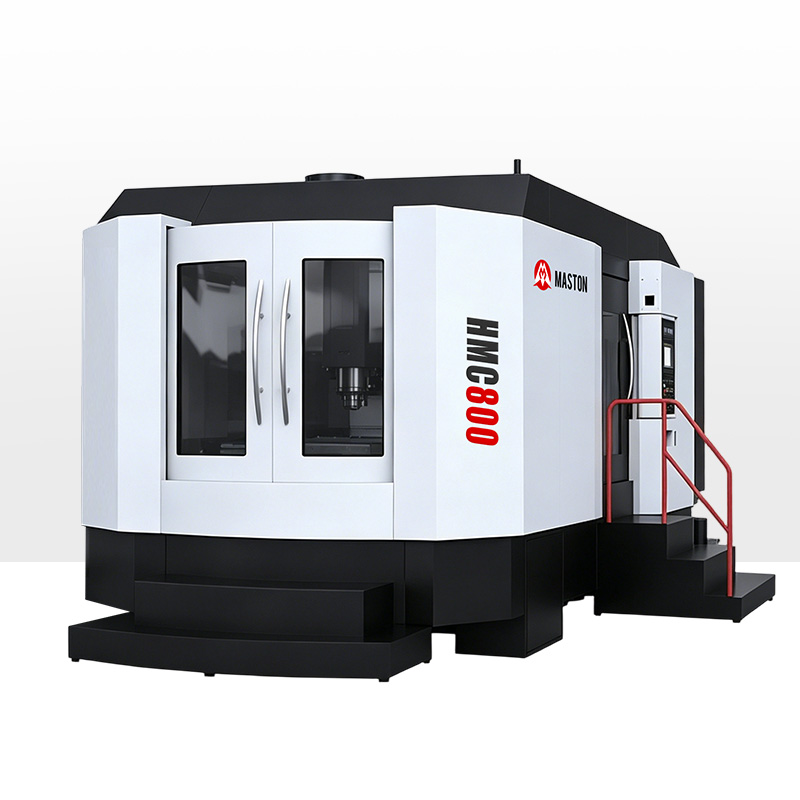

Model | Unit | HMC800 |
Table Dimensions | mm | 800*800 |
Table Left/Right Travel (X-axis) | mm | 1300 |
Table Back/Rear Travel (Z-axis) | mm | 1000 |
Spindle Head Up/Down Travel (Y-axis) | mm | 1000 |
Distance from Spindle Center to Table Surface | mm | 150-1150 |
Distance from Spindle End to Table Center | mm | 200-1200 |
Number of Tables | pcs | 1 |
T-Slots (Number - Width × Clearance) | mm | 5-22*125 |
Maximum Table Load Capacity | kg | 1500 |
Table Indexing | ° | 1°*360 |
Maximum Rotary Table Speed | r/min | 10 |
Main Motor Power | kw | 15/18.5 |
Spindle Taper | | BT50-190 |
Spindle Speed | rpm | 6000 |
Cutting Feed Rate | mm/min | 1-10000 |
Rapid Traverse Speed | m/min | 24 / 20/ 24 |
Tool Magazine | | 圆盘Arm30 |
Maximum Tool Diameter | mm | 112/200 |
Maximum Tool Length | mm | 400 |
Maximum Tool Weight | kg | 18 |
Tool Change Time (Tool to Tool) | sec | 3 |
Minimum Machine Setting Unit | mm | 0.001 |
X, Y, Z Axis Positioning Accuracy | mm | 0.012 |
X, Y, Z Axis Repeatability | mm | 0.008 |
B-Axis Positioning Accuracy (Table Rotation) | ″ | 10″ |
B-Axis Repeatability (Table Rotation) | ″ | 5″ |
Machine Weight | kg | 17000 |
External Dimensions (Length x Width x Height) | mm | 5050*3800*3300 |
