Characteristics of Horizontal Machining Center
Horizontal spindle layout, equipped with rotary worktable
One clamping completes multi-sided machining, less positioning error
High rigidity and shock resistance, suitable for heavy cutting
Smooth chip removal, good cooling effect
Automatic tool change, high processing efficiency
Support 4-axis linkage, process complex box parts
Double worktable optional, realize loading and processing simultaneously
High machining accuracy and stable batch product quality
Large floor space, high equipment cost

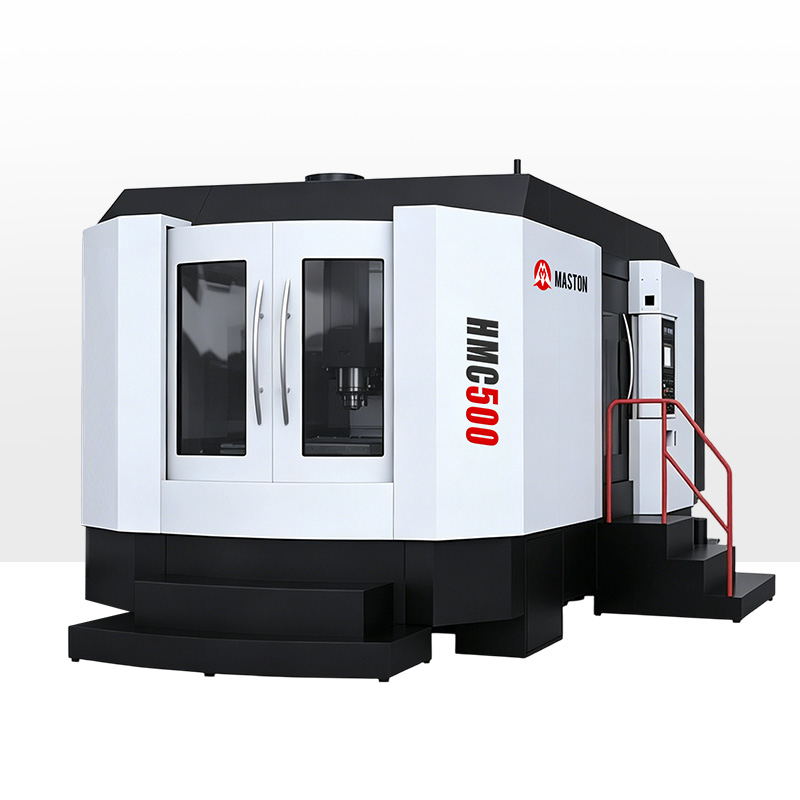

Model | Unit | HMC500 |
Workbench dimensions | mm | 500*500 |
Left-right travel of the workbench (X-axis) | mm | 800 |
Front-back travel of the workbench (Z-axis) | mm | 600 |
Up-down travel of the spindle box (Y-axis) | mm | 600 |
Distance from the spindle center to the workbench surface | mm | 100-750 |
Distance from the spindle end to the center of the workbench | mm | 150-950 |
Number of workbenches | pcs | 1 |
T-slot (quantity - width × gap) | mm | 5-18*100 |
Maximum load capacity of the workbench | kg | 500 |
Workbench indexing | ° | 1°*360 |
Maximum speed of the turntable | r/min | 10 |
Main motor power | kw | 11/15 |
Spindle taper | | BT40 |
Spindle speed | rpm | 8000 |
Cutting feed speed | mm/min | 1-10000 |
Fast moving speed | m/min | 36/32/32 |
Tool magazine | | 圆盘Arm24 |
Maximum diameter of the tool | mm | 112/200 |
Maximum length of the tool | mm | 400 |
Maximum weight of the tool | kg | 18 |
Tool change time (tool to tool) | sec | 3 |
Minimum setting unit of the machine tool | mm | 0.001 |
Positioning accuracy in X, Y, and Z directions | mm | 0.01 |
Repeatability positioning accuracy in X, Y, and Z directions | mm | 0.005 |
B-axis positioning accuracy (worktable rotation) | ″ | 10″ |
Repeatability positioning accuracy of the B-axis (worktable rotation) | ″ | 5” |
Machine tool weight | kg | 8500 |
Overall dimensions (length x width x height) | mm | 4650*3250*3000 |
