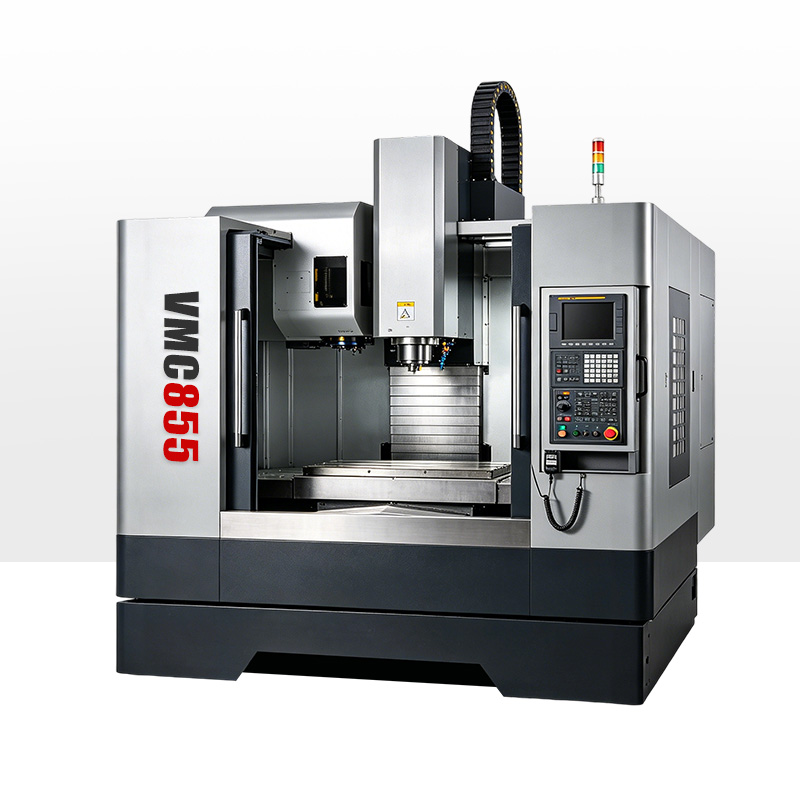

Vertical machining center (VMC) featuring a vertical spindle layout and superior comprehensive processing performance. It has unique processing characteristics that make it ideal for precision machining of complex workpieces such as molds, automotive parts, and mechanical components.
It boasts high precision and high stability. Equipped with advanced CNC control systems and high-rigidity bed structures, the machine effectively reduces vibration during high-speed operation. It maintains extremely high dimensional accuracy and surface finish for milling, drilling, tapping, and boring processes, meeting the strict precision requirements of fine mechanical parts. Its fixed spindle axis ensures consistent machining quality and low error repetition.
Specifications | Units | VMC855 |
Table size | mm | 1000*550 |
X axis travel | mm | 850 |
Y axis travel | mm | 550 |
Z axis travel | mm | 550 |
Max. worktable load | kg | 600 |
T slot(number-width*pitch) | - | 5-18*90 |
Max. spindle speed | rpm | 8000 |
Spindle taper | mm | BT40 |
Main motor power | kw | 7.5 |
X/Y/Z rapid traverse speed | m/min | 24/24/20 |
Cutting feed speed | mm/min | 1-8000 |
Guide rail type | - | Linear rail |
Distance from spindle axis to column surface | mm | 590 |
Distance between spindle nose and table surface | mm | 100-650 |
Positioning accuracy | mm | 0.0075 |
Repeat positioning accuracy | mm | 0.005 |
Tool magazine | - | Arm 24 |
Max. tool diameter | mm | 78/120 |
Max. tool weight | kg | 8 |
Machine weight | kg | 5500 |
Overall dimension(L*W*H) | mm | 2900*2400*2800 |
